Plug & play fuel pump & rising rate regulator upgrade to suit our turbo kits.
Availability: In Stock
Delivery date: Ships in 3-5 days
Manufacturer: Extreme Creations
*
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$1,150.00 (AUD)

All our turbo kits use our Plug n Play fuel pump & rising rate regulators.

We understand that some customers want to build their own turbo systems although there is limited options when it comes to easy fuel system upgrades, so we offer our fuel pump/regulator as a seperate item to help make the fuel system on your project a bit less of a headache.

Why & when is this needed

The stock fuel system uses a small fuel pump & fixed regulator, while this is fine for the factory setup it does become a problem when boost pressure is applied or when extra flow is required when using ethanol or oxigenated fuels.

As the boost pressure increases you lose more injector capacity because of the dropping effective fuel pressure working against the higher boost presure & the small factory fuel pump can't supply enough flow to keep up with the fuel demands of a turbo charged bike.

How does this work

With our upgrade the regulator references boost pressure & raises the fuel pressure. Rising fuel pressure makes the injectors flow more than their rated capacity enabling more power potenial than would normally be available.

This effect of increasing the injector capacity ( when measured against the factory setup) is especially suited to E85 applications where extra fuel flow is required.

 What is included

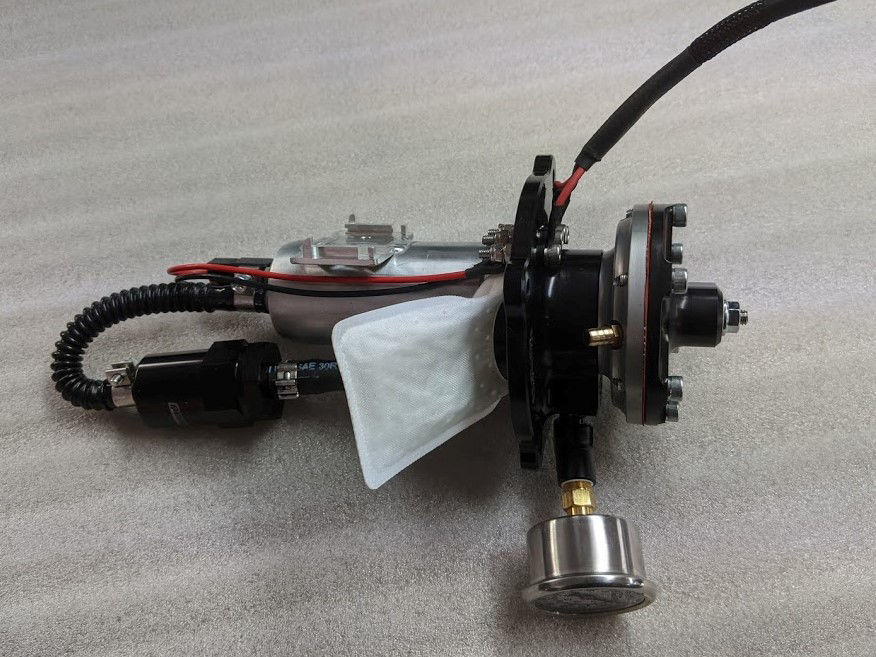

This is a fully anodised plug play unit that fits in the stock pump location & includes either a Walbro 255 or 340lph AEM E85 compatible pump depending on model, fuel filter & E85 compatible hoses & fittings, it accepts the factory fuel hose connector & electrical harness connector, it also includes a factory style fuel level sensor & uses stainless steel hardware .

A quality liquid filled fuel pressure gauge is also fitted to the unit for easy setting of the base pressure & as an easy visual reference to check on fuel pressures when installed on the bike.

Can also be supplied with an optional AN-6 fuel fitting for those people using non standard fuel hoses.

Prices shown are Australian dollars to view in a different currency please click the currency tab at the top of the page ^^
